Popular Applications:

Water Leaks / Air Leaks / Roof Leaks
Missing and Compromised Insulation
HVAC Issues – Heating and AirConditioning
Electrical Hot Spots
Underfloor Heating
Plumbing Problems
Stud and duct placement
Mechanical Equipment Failures
Pest Infestations
Solar Panel Evaluation

Specifications:

Display:3.2" full angle TFT display
IR sensor size: 220×160
Digital camera: 640 × 480 pixels
Field of View/shortest focus length: 35°×26°/4.0mm
Thermal sensitivity: 0.07°C
Temperature range: -4°F ~572°F ( -20°C ~300°C）
Measuring accuracy: ±2% / ±2°C
Spectral range: 8~14μm
Emissivity:0.1-1.0
Image frequency: 9Hz
Focus Mode: Fixed
Color-palettes: Rainbow, iron oxide red, cold color, black heat, and white heat
Power supply: Built-in chargeable 1800 battery
USB Connector Type: USB Micro-B: Data transfer to and from PC
external power Operation: AC adapter,90-260V AC input ,5V output to camera
Operating temperature range: 32 to 113°F (0°C to 45°C)
Storage temperature: -4 to 122°F (-20°C to 60°C)
OperatingHumidity: <85%RH
Storage medium: Built-in 3G (above 2 million images stored )
Size:140×80×28mm (5.5 x 3.1 x 1.1”)
Weight:0.46lb (208g)
Warranty: Two years warranty against manufacturing defects.

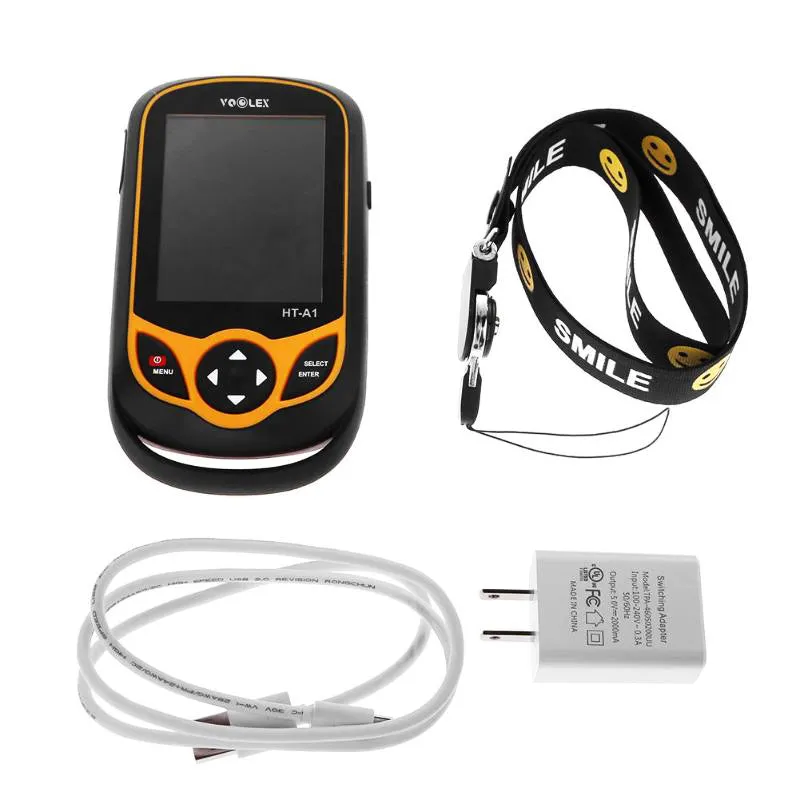

What’s in the box?

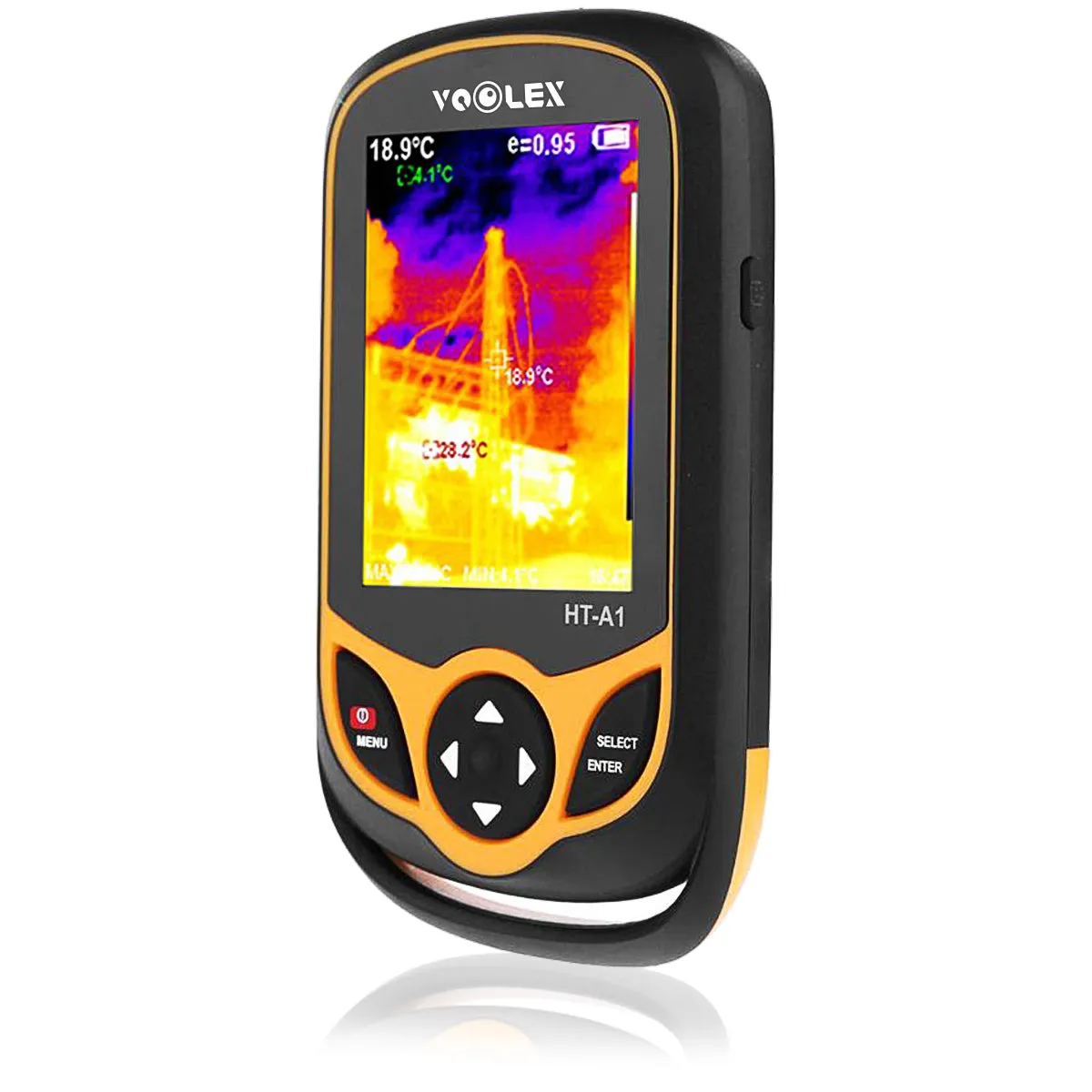

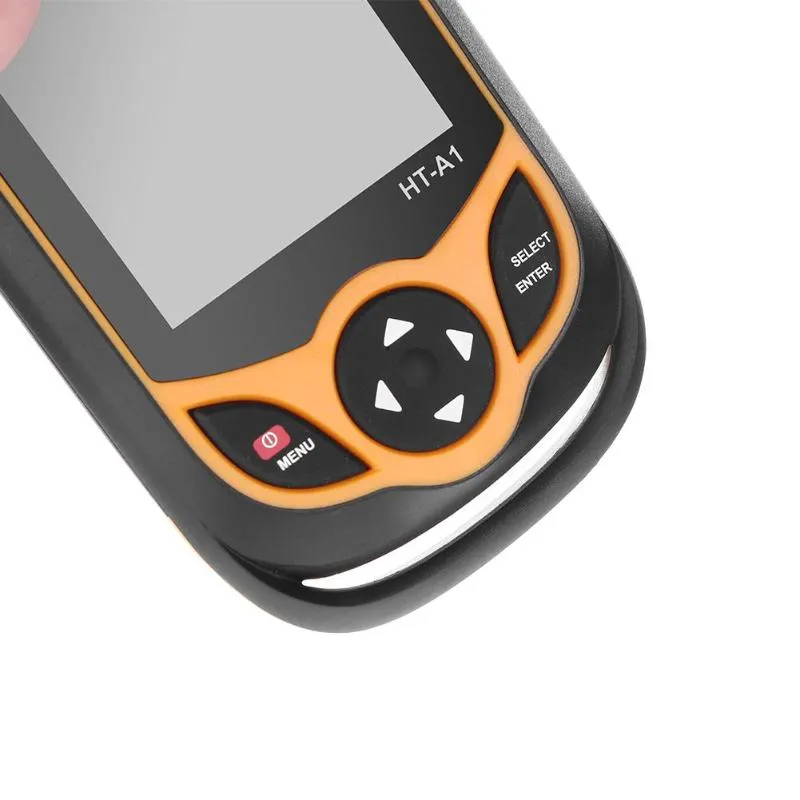

Infrared camera
Lanyard
Power supply/charger
USB cable
Printed documentation
